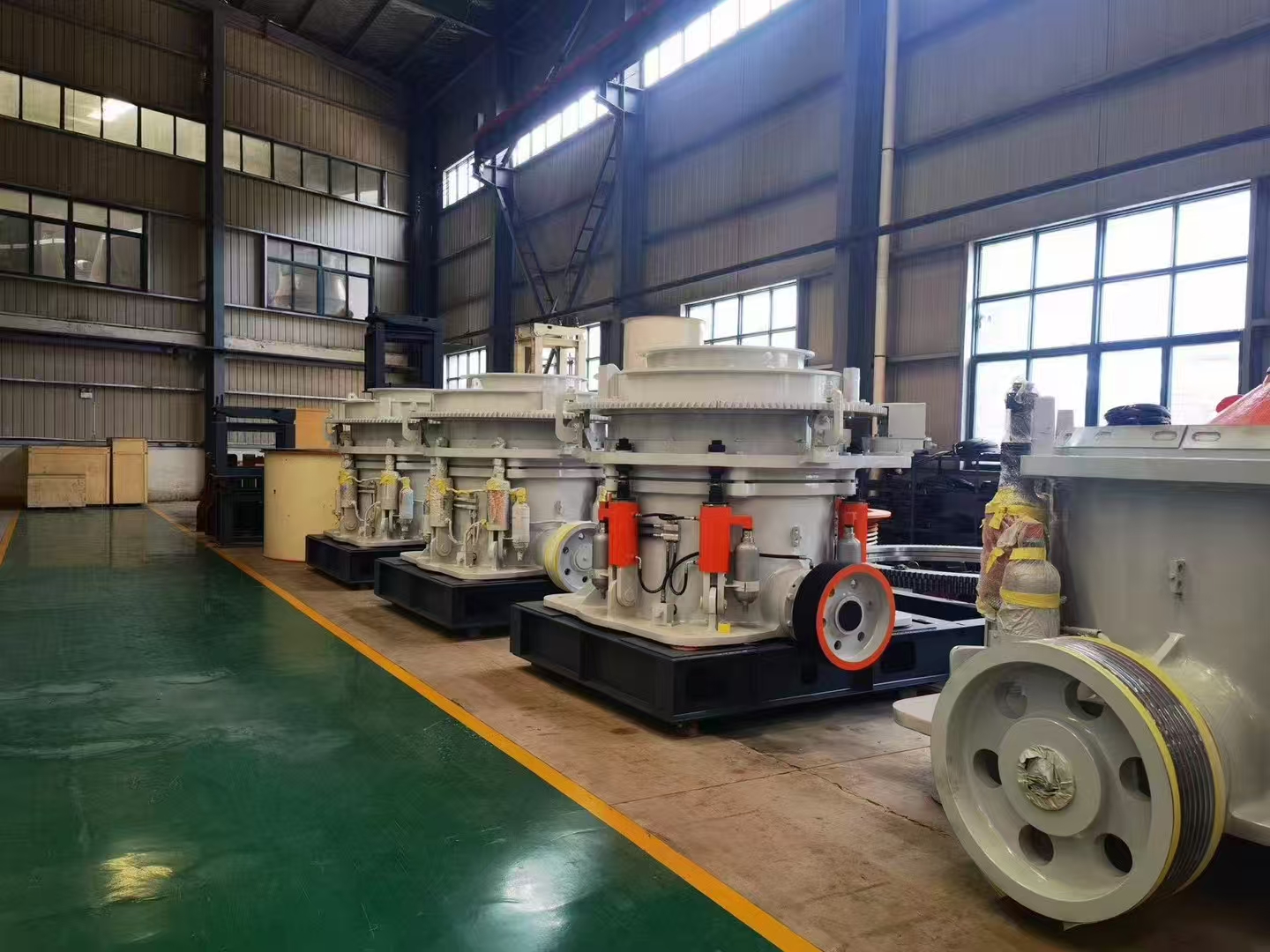

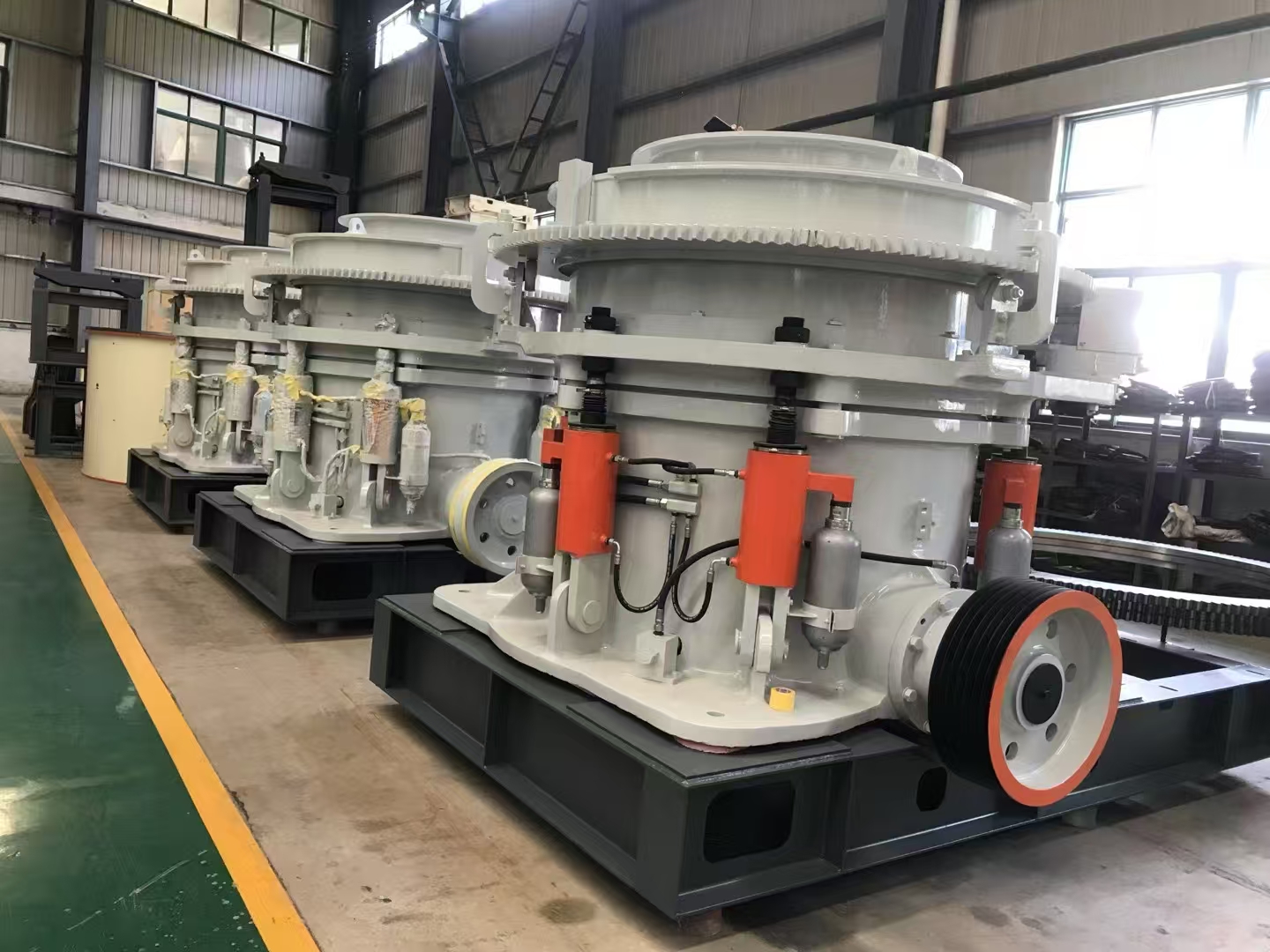

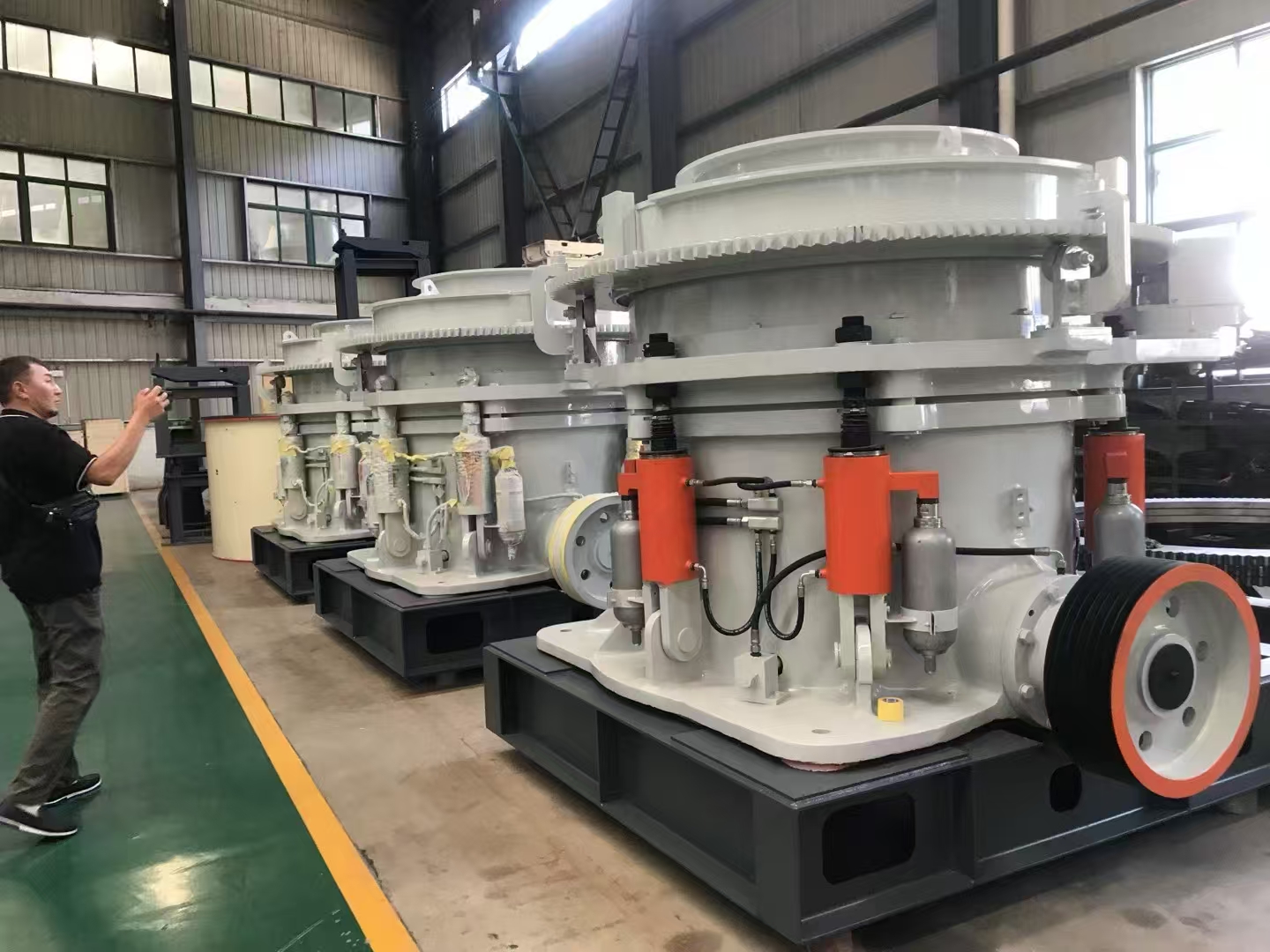

HPT Series highly efficient Hydraulic Cone Crusher is a world-level cone crusher introduced the up-to-the-minute technology of Germany. The cone crusher not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.
1.High crushing ratio and production efficiency.
2.Less spare part consumption and low operation cost.
3.Between-layer pressuring crushing and better finished product shape.
4.Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.
5.Thin oil lubrication makes the life time increased.
6.Various crushing cavity.
7.Easy maintenance and operation.
8.The crusher can provide customers larger capacity, better product shape, and easy operation.
The crushing principle of Hydraulic Cone Crusher is finished between fixed cone plate and movable cone plate. The cone crusher ’s motor drives the horizontal axis of the cocrusherthrough triangle belt and pulley, the horizontal axis drive the eccentric shaft bush to rotate through gear transmission. The eccentric shaft drives the main shaft to make the movable cone plate swing at a regulated track from time to time, the materials are crushed due to constant pressed and crooked in the crushing cavity. The finished products are discharged from the discharging open.
Type | Cavity (coarse/fine) | Close Side feed opening(mm) | Min CSS (mm) | Capacity (tPh) | Power KW(HP) |
HPT300 | C1 Extra Coarse | 230 | 25 | 220-440 | 250(350) |
C2 Coarse | 210 | 20 | 190-380 | ||
M Medium | 150 | 16 | 175-320 | ||
F1 Fine | 105 | 13 | 110-260 | ||
F2 Extra Fine | 80 | 10 | 100-240 | ||
HPT500 | C1 Extra Coarse | 330 | 38 | 425-790 | 400(500) |
C2 Coarse | 290 | 30 | 380-700 | ||
M Medium | 210 | 22 | 330-605 | ||
F1 Fine | 130 | 16 | 270-535 | ||
F2 Extra Fine | 95 | 13 | 200-430 | ||
HPT800 | C1 Extra Coarse | 350 | 38 | 545-1200 | 630(850) |
C2 Coarse | 300 | 32 | 495-1050 | ||
M Medium | 265 | 25 | 470-950 | ||
F1 Fine | 220 | 17 | 385-730 | ||
F2 Extra Fine | 150 | 14 | 310-600 | ||
F3 Extra Fine | 90 | 10 | 260-550 |
