VSI5X series of Vertical Shaft Impact Crusher is widely used in various metallic and nonmetallic ores, cement, corhart, abrasive material, glass, construction material, machine-made sand, metallurgy, etc. It is also applicable to crush various stones with different hardness in medium and fine crus
VSI6X Series Vertical Shaft Impact Crusher is a newly-developed and highly-efficient stone-crushing and sand-making machine with many national patent technologies. This machine adopts years of research and development experience and technical philosophy. Technologies such as new design of four opening impeller structure and special seal structure, which can prevent oil leak from bearing cylinder, are adopted.
1.New design, efficient crushing;
2.Technology upgrade, cost decreasing and benefit increasing;
3.Unique design, quality assurance;
4.Efficient working, easy maintenance;

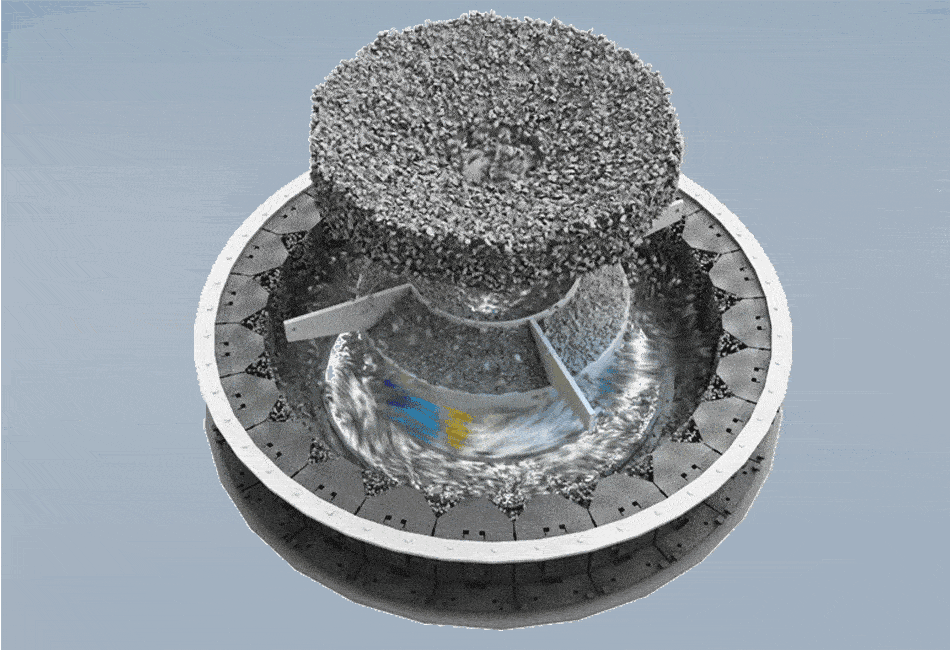

When entering into impeller, the raw material can be crushed directly by hitting impact plate after it is accelerated and threw out. The raw material can also be divided into two parts by material-dividing plate. One falls down from all around. The other enters into impeller and is accelerated, threw out and collides with the falling material and hit, rebound with impact plate. The circulation hits repeats. As the crushing is moving forward, small particle materials will gradually form a material bed around the impact plate which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards though outlet finally.
Model | ||||||
VSI6X1263 | VSI6X1150 | VSI6X1040 | VSI6X9026 | VSI6X8018 | ||
Central feeding(t/h) | Crushing | 454-486 | 344-368 | 264-283 | 109-117 | 109-117 |
Re-Shaping | 545-583 | 413-442 | 317-342 | 131-140 | 131-140 | |
Maximum(mm) | Crushing | ≤50 | ≤45 | ≤40 | ≤35 | ≤30 |
Re-Shaping | ≤60 | ≤55 | ≤50 | ≤45 | ≤40 | |
Main shaft speed(r/min) | 900-1200 | 1000-1300 | 1100-1400 | 1200-1500 | 1300-1700 | |
Power(kW) | 315×2 | 250×2 | 200×2 | 132×2 | 90×2 | |
